Main Technical Specifications
- Axle Configuration: 4 Axles (BPW / SAF / ADR options)
- Suspension: Mechanical leaf spring or air suspension
- Overall Length: 13,600 mm (custom lengths available)
- Width: 2,550 mm
- Chassis: Reinforced welded I-beam (S355 high tensile steel)
- Floor Options: Steel floor or hardwood timber floor
- Payload Capacity: 32–45 tonnes depending on regional regulations
- King Pin: 2” or 3.5” bolt-on
- Tyres: 385/65 R22.5 or 315/80 R22.5
- Braking System: WABCO EBS with RSS stability control
- Landing Legs: JOST 24T landing gear
- Rear Protection: UN/ECE compliant underrun protection
Designed for Heavy & Industrial Cargo
- ✔ 20ft / 40ft / 45ft container transport (twist-lock configuration)
- ✔ Heavy steel coils and structural beams
- ✔ Palletized construction materials
- ✔ Industrial machinery transport
- ✔ Timber, pipes and long materials

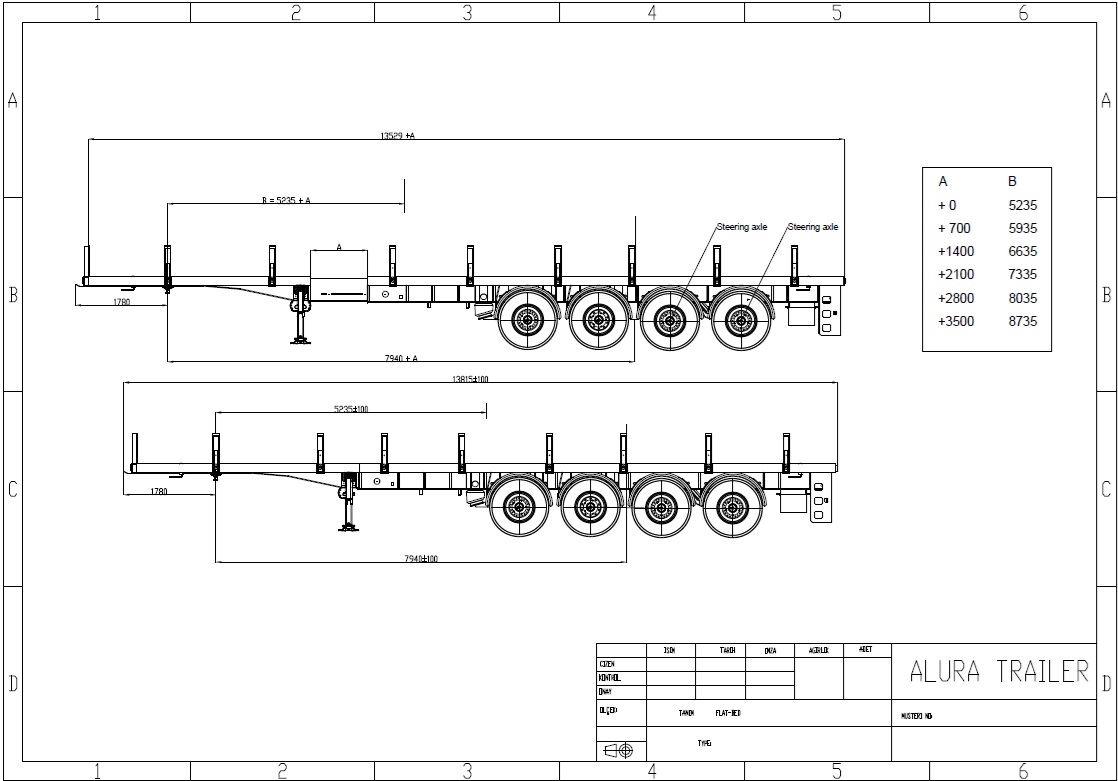

Engineering Drawing
Below is an example technical drawing of the 4 axle flatbed configuration.
Global Delivery & Export Standards
All 4 Axle Flatbed Trailers are manufactured in Türkiye under strict quality control procedures. Units are delivered worldwide with CE certification, complete export documentation and optimized shipping solutions including flat-rack, Ro-Ro and overland transport.
Download PDF or Request a Quote
Access full technical documentation or contact our engineering team for a customized quotation.
Frequently Asked Questions
What is the payload capacity of the 4 axle flatbed trailer?
Depending on configuration and local regulations, payload ranges between 32 and 45 tonnes.
Why choose a 4 axle configuration?
The additional axle improves load distribution and enables higher legal payload limits in many countries.
Can the trailer carry containers?
Yes. It can be equipped with twist-locks for 20ft, 40ft and 45ft containers.
Do you ship internationally?
Yes. Alura Trailer exports worldwide with CE certification and full customs documentation.
