TECHNICAL DATASHEET11 October 2026
Lowbed Semi Trailer · ALR-LWB-3
3-Axle Lowbed Semi Trailer
Length and width are customizable according to customer request and technical allowance
Capacity and Weight Rating
| Axle group rated capacity | 36 tonnes (3 × 12 t) |
|---|---|
| King pin load capacity | 18 tonnes |
| Gross Vehicle Weight (GVW) | 54 tonnes |
| Trailer tare weight | 9,998 kg |
| Calculated payload capacity | 44,002 kg (44.00 tonnes) |
Technical Specification
| Overall length (mm) | 13600 |
|---|---|
| Overall width (mm) | 2550 |
| Usable loading deck length (mm) | 9200 |
| Loading deck height (mm) | 900 |
| Axle spacing (mm) | 1360 |
| Gooseneck length (mm) | 1200 |
| Axle brand | OSMAN KOÇ |
| Brake type | Drum brake |
| Suspension | Air suspension |
| Steering configuration | Rear self-steering axle |
| Lift axle | First axle liftable |
| Tyre size | 245/70 R17.5 |
| Tyres and spare | 12+1 |
| Tyre brand | Bridgestone |
| King pin | 2 inch DIN |
| Landing legs | JOST 24 t two-speed |
| Electrical system | ASPÖCK 24 V / 15 pin |
| Braking system | WABCO EBS 2S/2M RSS |
| Main steel grade | ST52 / S355 |
| Deck surface | Chequered steel plate |
| Surface treatment and paint | Shot blast + epoxy primer + RAL top coat |
| Approval standard | EC-WVTA / CoC |
| Loading ramp system | Hydraulic double folding ramps |
| Gooseneck system | Fixed gooseneck |
| Extension system | No extension |
| Side extensions | 250 mm each side |
| Side covers / doors | Aluminium side guards |
| Twist locks | Not included |
| Lashing / Ro-Ro rings | Standard lashing rings |
| Storage | Standard toolbox |
| Water tank | Stainless steel water tank |
| Spare wheel | Spare wheel + carrier |
Optional Equipment and Configuration
| Extension | Optional |
|---|---|
| Tyres | Other sizes are available upon customer request |

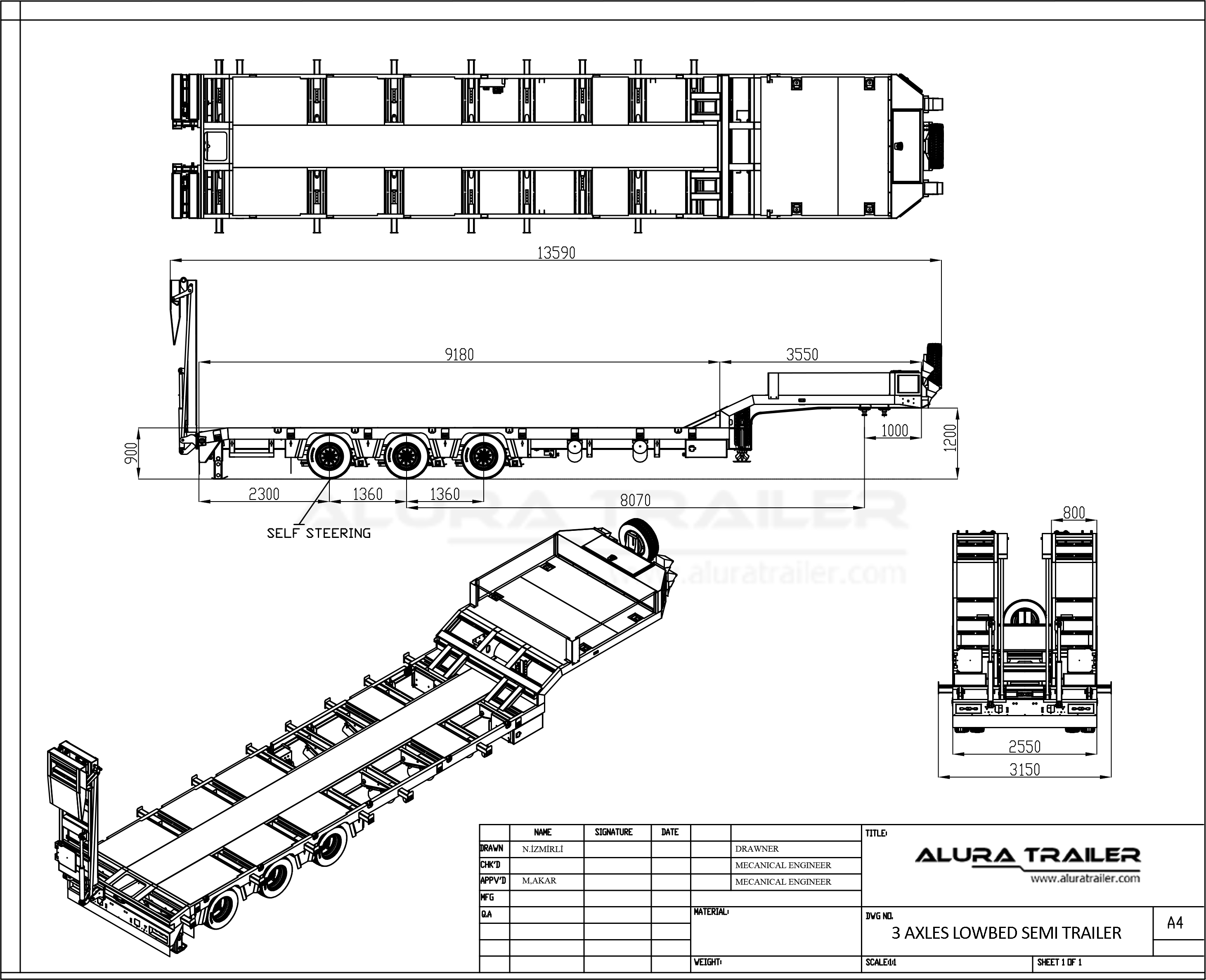

Reference Images
